XR8 Plus Combo G2S ESC + 4274 G3 Motor (2250kv)

This product ships from our Edmonton Warehouse. Drop-Ship is available for US customers.

Availability: Out of stock (ETA: Contact Us)

SKU: HWI38020504

Manufacturer: Hobby Wing

$483.16 (CAD)

Qty:

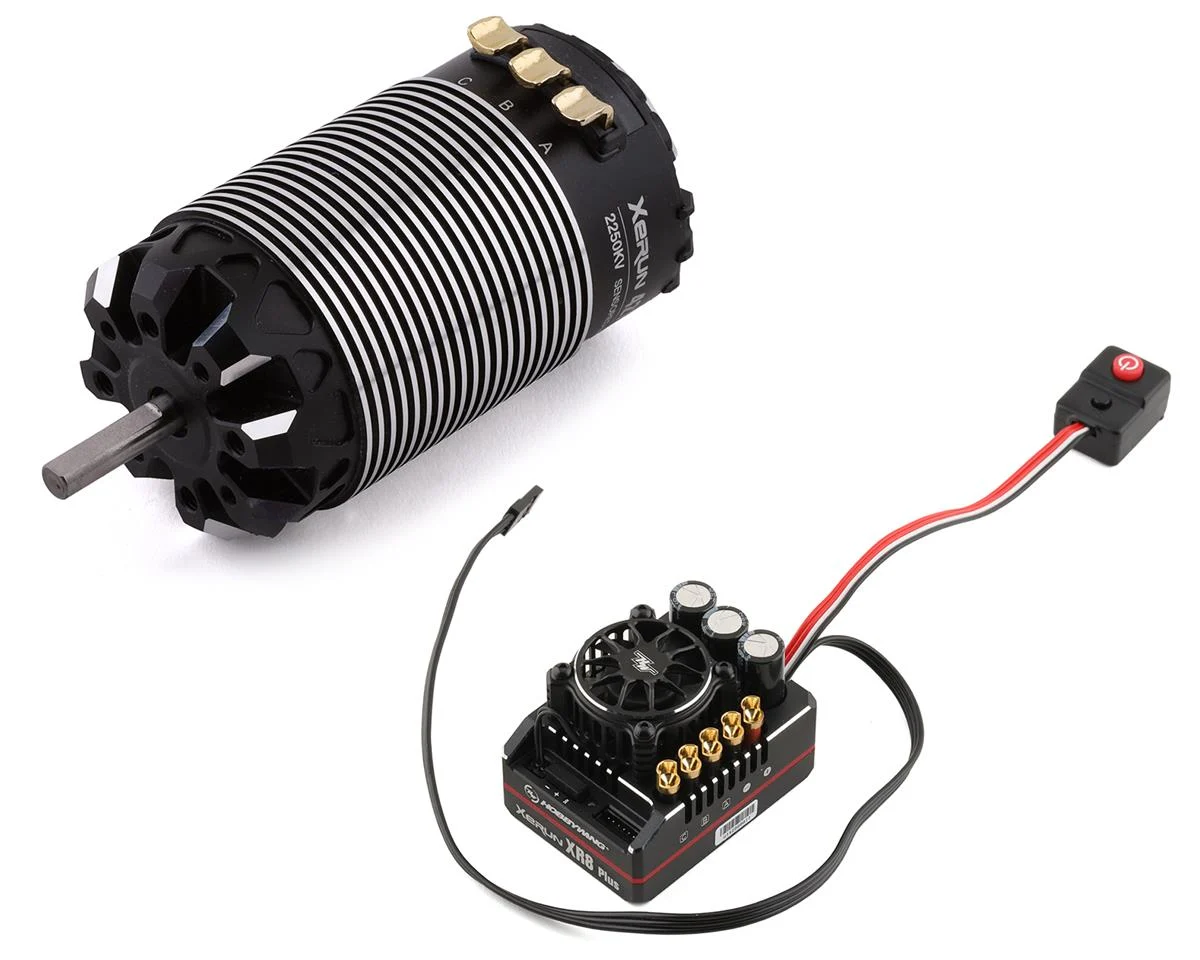

Hobbywing Xerun XR8 Plus G2S Brushless ESC/4268SD G3 Motor Combo. The Hobbywing Xerun XR8 Plus G2S 1/8 Competition Sensored Brushless ESC is the next level in 1/8 competition ESC's. Advancements have been made allowing this ESC to support 48° of boost and turbo timing. Pair this ESC with the included 4268SD G3 motor for extreme performance.

Features:

ESC:

Efficient heat dissipation system with lower temperature rise
Durable frameless fan
Internal Reverse Polarity Protection Circuit
RPM speed limit function
Easy Obtain Running Status with Real-time Data Recording Function
Multiple Programmable Items
Capacitor Thermal Protection
Super Internal BEC
Excellent dustproof performance
Ultra-soft 11AWG silicone wire
Customized solder tabs, easy to solder

Motor:

2250Kv recommended for 1/8 off road
Turbo Timing Technology
Full Sensored mode (when paired with XR8 ESC)
Adjustable Timing (Bi-Directional) 20-40 degrees
Advanced Hall Sensor System
4-pole-8-magnet "Staggered Pole" rotor - HOBBYWING Patented design
Guarantees users the effective heat dissipation and dust prevention
The use of double insulated windings (240°C R-rated), NMB bearings from Japan, and the high-intensity adhesive (340°C) guarantees users the outstanding performance and super durability

Specifications:

ESC:

Scale: 1/8th
Waterproof: No
Continuous/Peak ESC Current: 200A/1080A
Input Voltage: 2-6S Lipo
BEC Output: 6-8.4V Adjustable,
Continuous/Peak BEC Current: 6A/15A(Switch-mode)
ESC Programing: SET Button on ESC/LCD Program Box/OTA Programmer
Firmware Upgrade: Supported
Size: 56.1mmx42.1mmx38.5mm
Weight: 122g(w/wires)
Applications: SL BL Motors/SD BL Motors
Vehicles: 1/8th On-Road/Off-Road/Truggy Racing
KV Rating/T Count: 4S LiPo - 4268/4274 3000KV / 6S LiPo - 4274 2400KV

ESC Fan:

Size: 30x30x10mm
Voltage Range: 5-8.4V

Motor:

Kv: 2250Kv
Pole: 4
LiPo: 2S-6S
Shaft Diameter: 5mm
No Load Current: 5.4A
Size (Diameter x Length): 42x74mm
Weight: 354g
Application: 1/8 Off Road Truck
